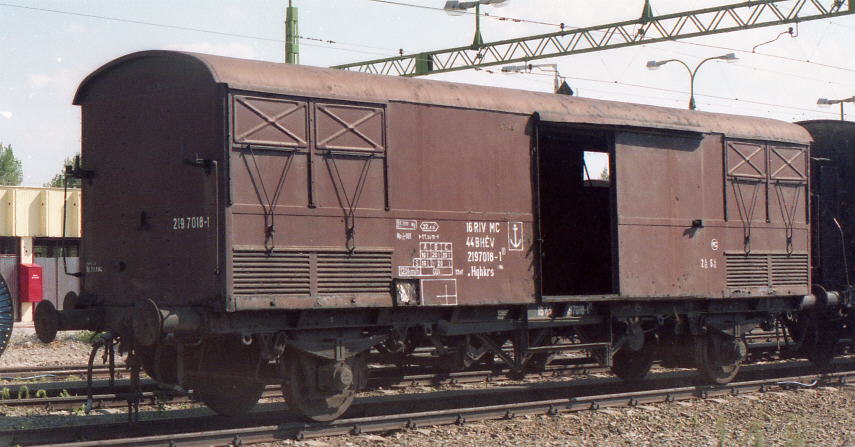

16 RIV MC 44 BHÉV 2197018-1 [P] •Hqhkrs, without door and vakuum pipe
Szentendre 26.07.1989 © Per Topp Nielsen
| 44 BHÉV | •Hfghkrs | IGA |
16 RIV MC 44 BHÉV 2197018-1 [P] •Hqhkrs, without door and vakuum pipe |
| | CODE + VKM | 21 44 BHÉV | Budapesti Helyi Érdekü Vasutak | ||
| | UIC 1980 | 21 44 2197 000 - 2197 026 | •Hfghkrs Hfghkks | ||
| | Ex |
| | 20. L/P min | * 1144 | cm | | 30. DB/SSH | 135 | cm | | 40. BR AUT | Hik-GP | |
| | 21. L/P max | 1152 | cm | | 31. DH/ESH | 190 | cm | | 41. BR MAN | Handlever | |
| | 22. AXT/BCA | 700 | cm | | 32. FLH | ? | cm | | 42. No. built | ? | |
| | 23. BAXT | -- | cm | | 33. GLW | 36 | t | | 43. Built | 1940 - 1941 | |
| | 24. IL | 1000 | cm | | 34. TARE | 15,0 | t | | 44. Built by | Ganz | |
| | 25. IB | 224 | cm | | 35. ABC max | 20,0 | t | | 45. Y + | ? | |
| | 26. BFL | 22,4 | m2 | | 36. @ KM/H | S | km/h | | 46. Y OBS | 1970 - 1990 | |
| | 27. IHS | 207 | cm | | 37. KM/H max | S | km/h | | 47. DRW | -- | |
| | 28. IHM | 238 | cm | | 38. @ ABC | 20,0 | t | | 48. FOTO | More photos | |
| | 29. RF | 51 | m3 | | 39. 120 km/h | 0,0 | t | | 49. MORE INFO | -- |
Rem:
*) So messured on 2197014, markings mostly say 11,50 m.

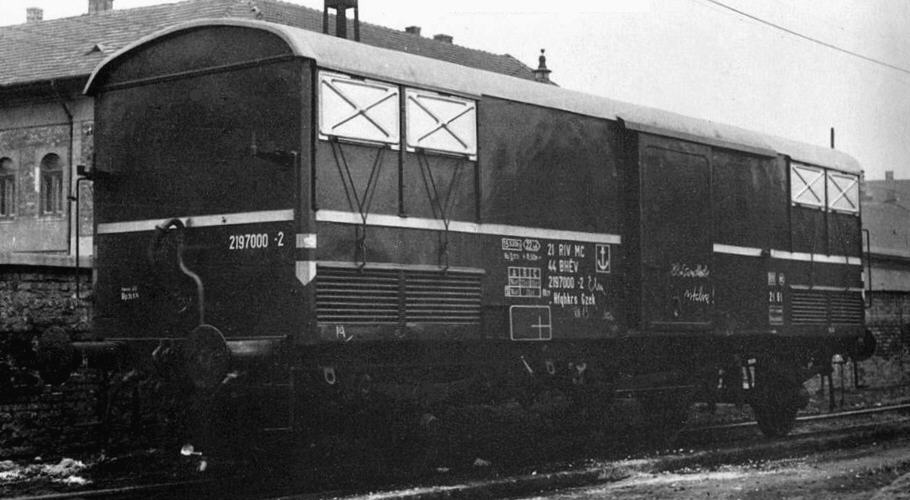

The original 21 RIV MC 44 BHÉV 2197000-2 •Hfqhkrs Gzek, ex coll. Per Topp Nielsen |
